Traffic-light-circuit

Classic Control Board

Describtion

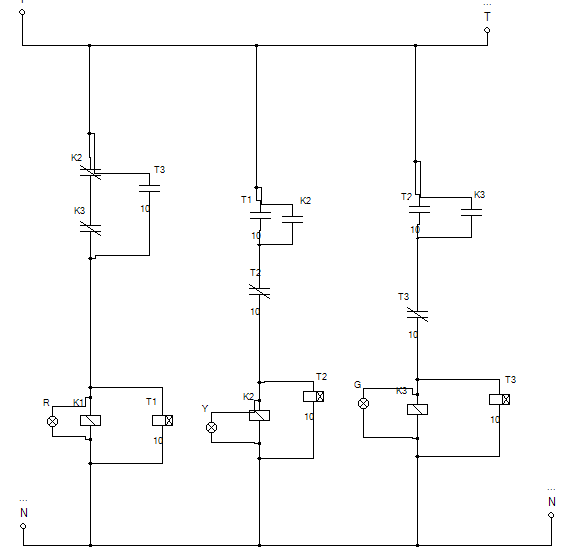

The following figure represents the circuit to control a traffic signal to illuminate the three lamps in succession, so that each lamp is lit for 10 minutes, then turns off, then turns on the next lamp, then turns off and so on.

Components used

• 3 Timer
• 2 Relay
• 3 lamp
