The contents of this github repository represents my solution to a fictitious micro-service assignment designed by Waracle.
The original assignment can be viewed at https://github.com/Waracle/cake-manager
My solution to this assignment is implemented as a Spring Boot application.
Whilst the initial issues with the intern's code were fixable (i.e. source files for Java code were not packaged correctly etc) I decided that it was a more efficient use of time to re-implement the solution in a more modern framework (as suggested). Spring Boot was selected as it supports standalone rapid application development which can easily be tranistioned to a production-ready service.
-
Download or clone this repository to an empty folder (i.e.
waracle-cakemanager) on your local machine:git clone https://github.com/dazoido/cake-manager.gitwaracle-cakemanager -
To launch the application, navigate to the
waracle-cakemanagerfolder and run the following command:./mvnw spring-boot:runAlternatively, if you have Maven installed globally in your environment, run the following command:
mvn spring-boot:run -
When the application is launched it is prepopulated using the following source data:
The service is accessible via two primary interfaces, a Web User Interface and REST interface.
This interface allows a user to view all cakes stored and add new cakes. Users are also able to download all cakes stored as a JSON file via the interface. The interface does not currently require authentication to be accessed.
Its is available at http://localhost:8080
The REST interface provides the following endpoints:
Returns a list of cakes as JSON
GET http://localhost:8080/cakes
Example request:
curl --location --request GET 'localhost:8080/cakes'
Adds a cake to the data store
POST http://localhost:8080/cakes
Example request:
curl --location --request POST 'localhost:8080/cakes' \
--header 'Content-Type: application/json' \
--data-raw '{
"title":"Chocolate Cake",
"desc":"A super chocolatey cake",
"image":"https://food-images.files.bbci.co.uk/food/recipes/easy_chocolate_cake_31070_16x9.jpg"
}'
Drops cake data and reloads from source
POST http://localhost:8080/cakes/reset
Example request:
curl --location --request POST 'localhost:8080/cakes/resetData'

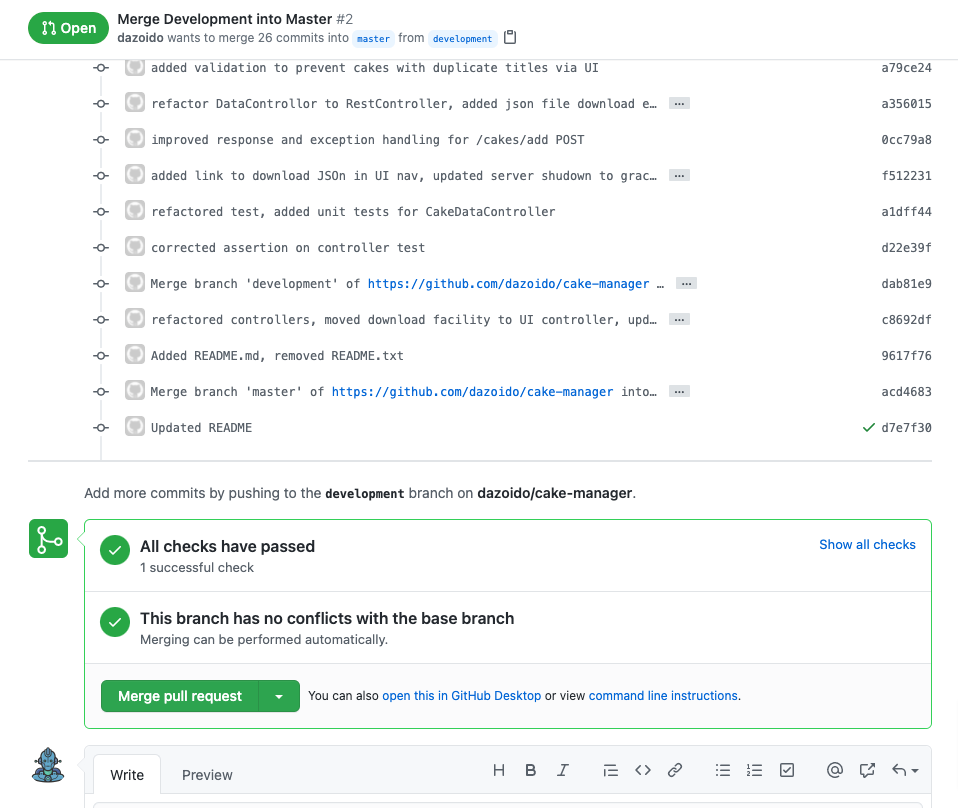

Key changes/commits made to the original master branch are listed below:
This can also be viewed at:
* 9617f76 Added README.md, removed README.txt
* c8692df refactored controllers, moved download facility to UI controller, update UI nav links
* dab81e9 (origin/development) Merge branch 'development' of https://github.com/dazoido/cake-manager into development
* d22e39f (master-backup) corrected assertion on controller test
* a1dff44 refactored test, added unit tests for CakeDataController
* f512231 added link to download JSOn in UI nav, updated server shudown to graceful
* 0cc79a8 improved response and exception handling for /cakes/add POST
* a356015 refactor DataControllor to RestController, added json file download endpoint
* a79ce24 added validation to prevent cakes with duplicate titles via UI
* d912ca0 implemented form validation for addCakeForm, bit more styling :-)
* af28538 added impl to save cake details submitted via UI form
* 9ce8eb0 updated to load json data on startup added reset data endpoint
* 1cacf06 more template styling to look a bit nicer
* 94b6f29 fix deduping on load data, updated template view for cake list display
* 6f94841 port JerseyService to Controller, as can't use both together doh!
* 96d0b72 add support for thymeleaf templates, add UI controller for user management bits
* 3ba0f73 remove ability to add duplicate cakes with same title
* 4dd8eba remove redundant code, components and config
* edbfca8 added implementation to load json data from url
* 9dc43ed added utility script to refresh vscode classpath
* c3e3d20 updated to use JpaRepository, added test to validate data save and fetch from db
* a188fae added simple utility script for compiling and launching app
* eb2e9d5 added support for spring jpa to use for adding dummy cake
* 62e5b9f fixed package hierachy added skeleton and support for Sprint Boot project
CI has been implement for this repository using Github Actions. Automatic builds (including unit test execution) will be triggered on push or pull requests
Given more time the following items would be implemented:
- Intergrate UI with Oauth
- Containerise using docker
- Add authentication to API/REST tier.
- Add more unit and integration tests
- Implement code coverage and threshold alerts with Jacoco or alternative
- Use a css framework such as Twitter Bootstrap or Semantic UI for UI styling and remove hardcoded/in-line css
- Implement and style error pages for /error mapping for /error
- Review and apply key logging statements across code at appropriate log levels
