Install Foo

Install project Foo in Debug and Release variants (Makefile generator):

> cmake -HFoo -B_builds/Foo-debug -DCMAKE_BUILD_TYPE=Debug -DCMAKE_DEBUG_POSTFIX=d -DCMAKE_INSTALL_PREFIX="`pwd`/_install"
> cmake --build _builds/Foo-debug --target install
...
Install the project...
-- Install configuration: "Debug"
-- Installing: /.../_install/lib/libbard.a
-- Installing: /.../_install/lib/libbazd.a
-- Installing: /.../_install/include/foo
-- Installing: /.../_install/include/foo/Bar.hpp
-- Installing: /.../_install/include/foo/Baz.hpp
-- Installing: /.../_install/include/foo/BAR_EXPORT.h
-- Installing: /.../_install/include/foo/BAZ_EXPORT.h
-- Installing: /.../_install/lib/cmake/Foo/FooConfig.cmake
-- Installing: /.../_install/lib/cmake/Foo/FooConfigVersion.cmake
-- Installing: /.../_install/lib/cmake/Foo/FooTargets.cmake
-- Installing: /.../_install/lib/cmake/Foo/FooTargets-debug.cmake

> cmake -HFoo -B_builds/Foo-release -DCMAKE_BUILD_TYPE=Release -DCMAKE_INSTALL_PREFIX="`pwd`/_install"
> cmake --build _builds/Foo-release --target install
...
Install the project...
-- Install configuration: "Release"
-- Installing: /.../_install/lib/libbar.a
-- Installing: /.../_install/lib/libbaz.a
-- Up-to-date: /.../_install/include/foo
-- Up-to-date: /.../_install/include/foo/Bar.hpp
-- Up-to-date: /.../_install/include/foo/Baz.hpp
-- Installing: /.../_install/include/foo/BAR_EXPORT.h
-- Installing: /.../_install/include/foo/BAZ_EXPORT.h
-- Installing: /.../_install/lib/cmake/Foo/FooConfig.cmake
-- Installing: /.../_install/lib/cmake/Foo/FooConfigVersion.cmake
-- Installing: /.../_install/lib/cmake/Foo/FooTargets.cmake
-- Installing: /.../_install/lib/cmake/Foo/FooTargets-release.cmake

Note that:

• library target bar for different build types has different names: libbar.a and libbard.a
• header files is equal for both variants
• cmake-config files FooConfig.cmake, FooConfigVersion.cmake and FooTargets.cmake is equal for both variants
• FooTargets-release.cmake set Release imported target properties, e.g. IMPORTED_LOCATION_RELEASE
• FooTargets-debug.cmake set Debug imported target properties, e.g. IMPORTED_LOCATION_DEBUG

Note:

• For -H see: https://cgold.readthedocs.io/en/latest/glossary/-H.html

Boo (use installed Foo)

Easiest way to find and include FooConfig.cmake file is to set CMAKE_INSTALL_PREFIX:

> cmake -HBoo -B_builds/Boo -DCMAKE_INSTALL_PREFIX="`pwd`/_install"

Also CMAKE_PREFIX_PATH and Foo_DIR can be used (do not forget to remove _builds/Boo directory before every configure):

> cmake -HBoo -B_builds/Boo -DCMAKE_PREFIX_PATH="`pwd`/_install"
> cmake -HBoo -B_builds/Boo -DFoo_DIR="`pwd`/_install/lib/cmake/Foo"

find_package config-mode command will include FooConfig.cmake file and import new target Foo::bar:

> cat Boo/CMakeLists.txt
find_package(Foo CONFIG REQUIRED)
add_executable(boo boo.cpp)
target_link_libraries(boo Foo::bar)

Note that:

• definition FOO_BAR_DEBUG will be added automatically
• include directory for target Foo::bar will be added automatically
• in Debug-mode macro FOO_BAR_DEBUG will be 1 and linker will use libbard.a library
• in Release-mode macro FOO_BAR_DEBUG will be 0 and linker will use libbar.a library
• if find_package command specify library version then FooConfigVersion.cmake module will check compatibility:

> grep find_package Boo/CMakeLists.txt
find_package(Foo 2.0 CONFIG REQUIRED)
> cmake -HBoo -B_builds/Boo -DCMAKE_INSTALL_PREFIX="`pwd`/_install"
CMake Error at CMakeLists.txt:8 (find_package):
  Could not find a configuration file for package "Foo" that is compatible
  with requested version "2.0".

The following configuration files were considered but not accepted:

    /.../_install/lib/cmake/Foo/FooConfig.cmake, version: 1.2.3

Script

See jenkins.py script for automatic testing + options --install-boo/--shared and --monolithic.

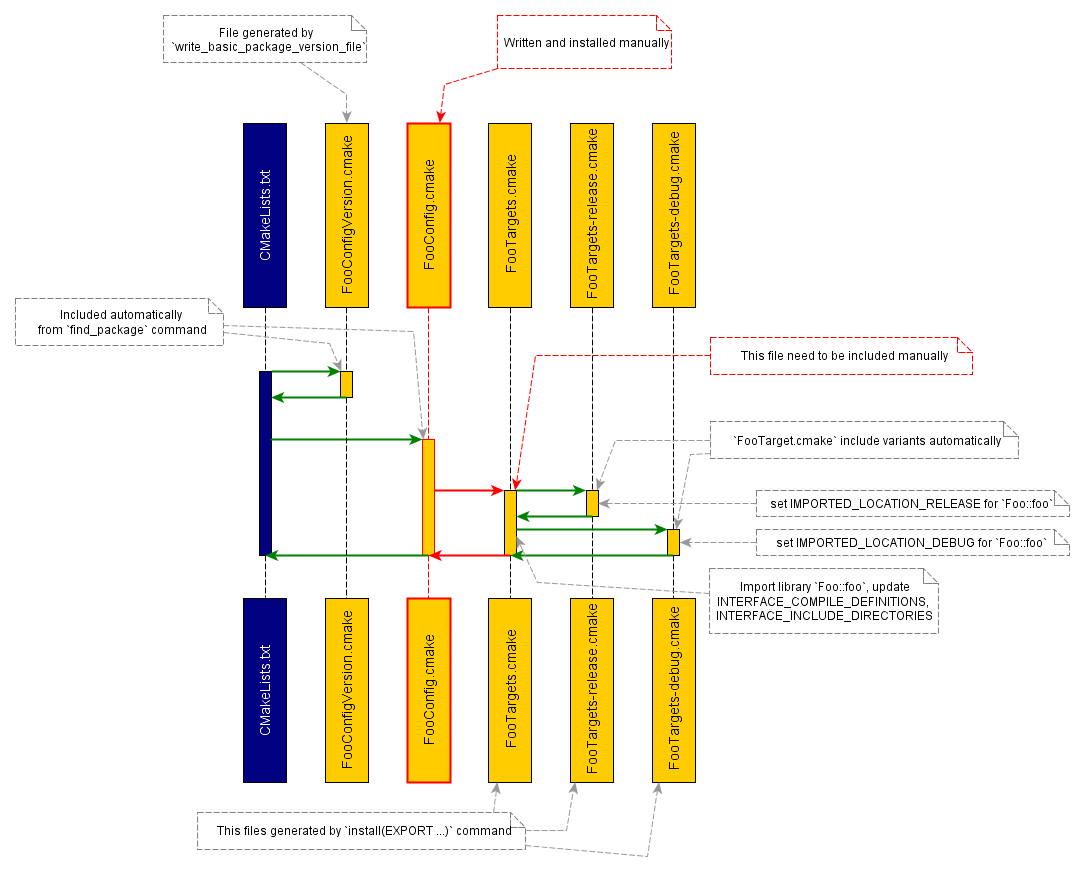

UML sequence diagram
