math/cuda: speed up large-input BLS12-381 MSM

[peter941221]

This speeds up the opt-in CUDA BLS12-381 MSM path for large inputs without changing CudaMSM::compute or default CPU MSM selection.

Summary

1. Replace the previous CUDA bucket path with a fixed-key pipeline: count, prefix-scan, scatter, task-list accumulation, and two-stage bucket reduction.

2. Keep the public API unchanged and leave CPU MSM selection untouched.

Validation

1. CUDA output was checked against CPU pippenger::msm.

2. Checked cases include mixed inputs, deliberate bucket collisions, small-window collisions, negative signed digits, zero-heavy inputs, and a deterministic 257-point input.

3. All checked outputs matched CPU affine coordinates.

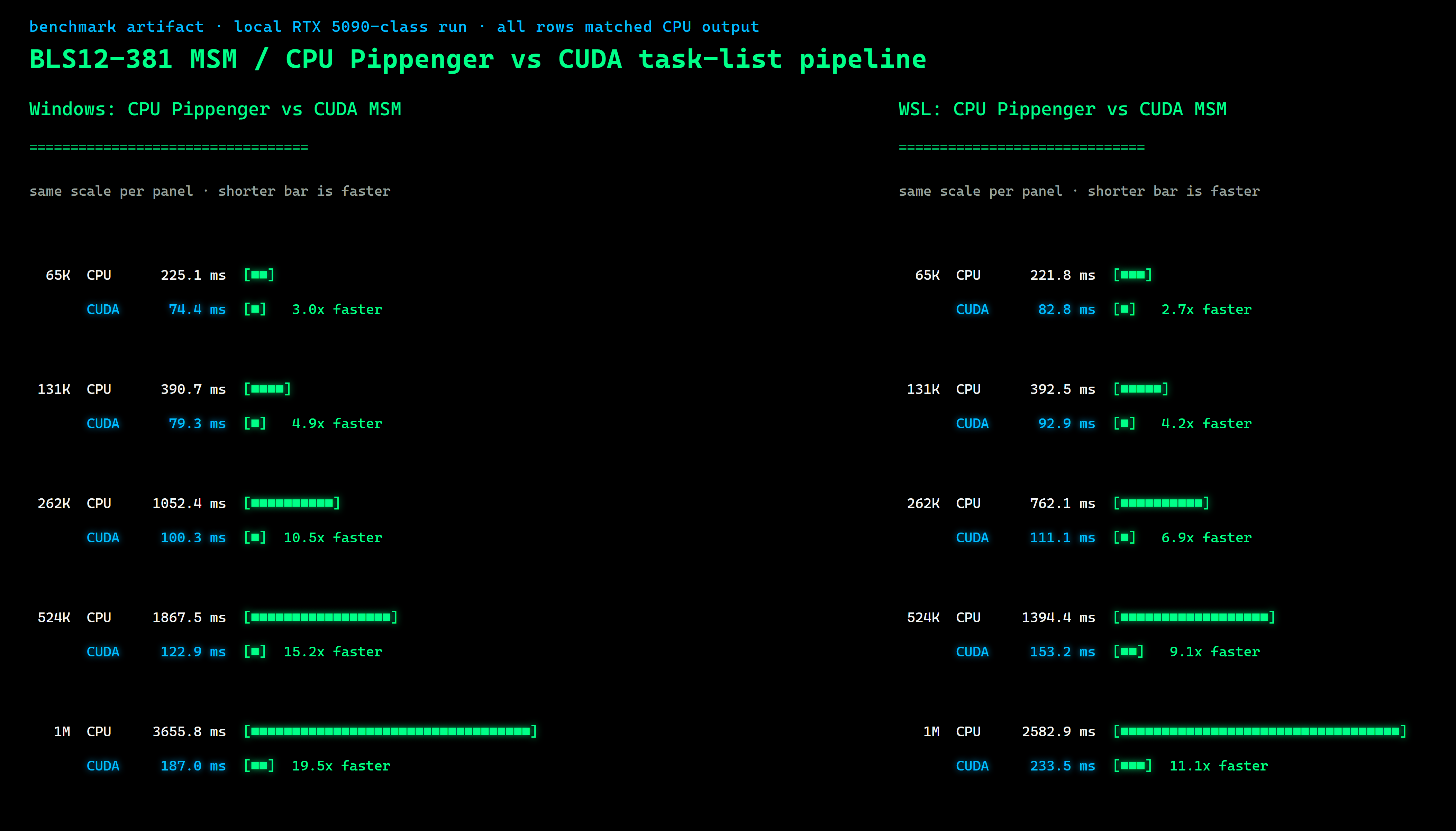

Benchmark

1. Windows, local RTX 5090-class run:
   65,536 points: CPU 225.135 ms, CUDA 74.398 ms, 3.0x faster.
   1,048,576 points: CPU 3655.832 ms, CUDA 187.013 ms, 19.5x faster.

2. WSL on the same machine:
   65,536 points: CPU 221.848 ms, CUDA 82.839 ms, 2.7x faster.
   1,048,576 points: CPU 2582.938 ms, CUDA 233.516 ms, 11.1x faster.

3. Every benchmark row was correctness-checked against CPU output.

Caveats

1. Small inputs are still dominated by CUDA launch and host/device synchronization overhead, so this should stay an opt-in CUDA path improvement rather than a default-path switch.

2. Repo-local Windows tests are still blocked before MSM tests by the existing unconditional pprof v0.13.0 dev-dependency issue on this target.

3. Repo-local WSL tests are still blocked before MSM tests by an unrelated koalabear / rustc 1.95.0 type-checking ICE path.

4. Because of those repo-local blockers, validation used an external harness depending only on local lambdaworks-math with default-features = false and features = ["std", "cuda"].

Screenshot

Part of #730

[greptile-apps]

Greptile Summary

This PR replaces the previously racy single-pass CUDA bucket-accumulation kernel with a correct, fully-parallel six-stage pipeline: GPU counting → CPU prefix scan + task splitting → GPU scatter (atomic) → GPU partial-segment accumulation → GPU finalize-segment → GPU two-phase chunked bucket reduction. The public CudaMSM::compute API is unchanged, and the guard that blocked multi-point MSM is removed now that the correctness problem is solved.

• The mathematical correctness of the new chunked bucket reduction was verified: the carry term higher_chunks_sum * chunk_len correctly accounts for cross-chunk weight adjustments, producing ∑(i+1)·B[i] across all windows.
• Overflow is consistently guarded on the Rust side with checked_mul / checked_u32_len before any value reaches the GPU; atomic atomicAdd in the scatter kernel guarantees unique write slots with no data races.
• Two kernels (segmented_bucket_accumulation_bls12_381 and bucket_reduction_bls12_381) are registered in load_ptx but never invoked in the compute path; one test retains a stale "race condition" comment.

Confidence Score: 4/5

The core algorithmic change is sound — the new scatter+accumulate pipeline correctly eliminates the prior race condition, overflow checks are in place throughout, and the added tests cover bucket collisions, negative signed digits, and deterministic medium-size inputs.

Two dead kernel registrations and one stale comment are the only findings; no correctness, safety, or data-integrity issues were identified in the new pipeline.

crates/math/src/msm/cuda.rs — the kernel registration list and the stale test comment both benefit from a small cleanup before merge.

Important Files Changed

Filename	Overview
crates/math/src/gpu/cuda/shaders/msm/msm.cuh	Replaces the racy single-pass accumulation kernel with a five-stage pipeline (count, scatter, partial-accumulate, finalize-accumulate, chunked-reduce) using atomic writes for correctness; two kernels (segmented_bucket_accumulation and bucket_reduction) remain defined but are no longer called from the Rust side.
crates/math/src/gpu/cuda/shaders/msm/bls12_381_msm.cu	Entry-point wrappers for all new pipeline kernels added; old bucket_accumulation_bls12_381 removed; segmented_bucket_accumulation_bls12_381 and bucket_reduction_bls12_381 still exported in the .cu file but are never invoked by the Rust host code.
crates/math/src/msm/cuda.rs	Orchestrates the full pipeline; adds CPU-side prefix scan and task-splitting helpers with overflow guards; registers two kernels that are never called in the compute path; one test retains a stale comment about the now-fixed race condition.

Sequence Diagram

sequenceDiagram
    participant CPU as CPU (Rust)
    participant GPU as GPU (CUDA Kernels)

    CPU->>GPU: htod: scalars, points, config
    CPU->>GPU: alloc_zeros: counts_buf

    GPU->>GPU: count_bucket_entries_bls12_381

    GPU->>CPU: sync_reclaim counts_buf

    CPU->>CPU: exclusive_scan_counts → offsets
    CPU->>CPU: build_segment_tasks → task_offsets, task_starts, task_lengths

    CPU->>GPU: htod: offsets_buf, task_offsets_buf, task_starts_buf, task_lengths_buf
    CPU->>GPU: alloc_zeros: write_counts_buf, sorted_descriptors_buf, buckets_buf, partial_buckets_buf

    GPU->>GPU: scatter_bucket_descriptors_bls12_381

    GPU->>GPU: partial_segment_accumulation_bls12_381

    GPU->>GPU: finalize_segment_accumulation_bls12_381

    GPU->>GPU: partial_bucket_reduction_bls12_381

    GPU->>GPU: finalize_bucket_reduction_bls12_381

    GPU->>CPU: sync_reclaim window_sums_buf

    CPU->>CPU: Horner window combination → MSM result

Loading

Prompt To Fix All With AI

Fix the following 2 code review issues. Work through them one at a time, proposing concise fixes.

---

### Issue 1 of 2
crates/math/src/msm/cuda.rs:155-164
Two of the eight registered kernels — `segmented_bucket_accumulation_bls12_381` and `bucket_reduction_bls12_381` — are registered with `load_ptx` but never fetched via `get_func` in the compute path. The new pipeline always goes through `partial_segment_accumulation` + `finalize_segment_accumulation` and `partial_bucket_reduction` + `finalize_bucket_reduction`. Keeping dead entries in the registration list forces cudarc to materialise those kernel stubs from the PTX on every device init and keeps the names alive unnecessarily.

```suggestion
                &[
                    "count_bucket_entries_bls12_381",
                    "scatter_bucket_descriptors_bls12_381",
                    "partial_segment_accumulation_bls12_381",
                    "finalize_segment_accumulation_bls12_381",
                    "partial_bucket_reduction_bls12_381",
                    "finalize_bucket_reduction_bls12_381",
                ],
```

### Issue 2 of 2
crates/math/src/msm/cuda.rs:1159-1160
This comment was accurate when the test deliberately used single-point inputs to sidestep the old race condition, but the race condition was eliminated by this PR. The test now exercises MSM with single points as a correctness check, not as a workaround, so the comment is misleading.

```suggestion
        let g = BLS12381Curve::generator();
```

_{Reviews (1): Last reviewed commit: "Merge branch 'main' into issue/lambdawor..." | Re-trigger Greptile}

[peter941221]

Addressed in f8fdd29.

1. Removed the two unused kernel registrations from load_ptx.

2. Dropped the stale single-point race-condition comment in test_cuda_msm_small.

[peter941221]

Small follow-up: this PR is still limited to the large-input CUDA MSM correctness-plus-speedup path already documented in the thread. If you want the diff cut down further, I can narrow it to the smallest mergeable slice.
